Shade Innovations is pulling back the curtains on its new Wireless TriMesh platform, a professional-grade Zigbee control platform engineered to deliver greater reliability, visibility, and control across large-scale motorized shade networks. According to Ryan Gustafson, Founder and CEO of Shade Innovations, TriMesh can be equated to essentially a new piece of infrastructure for the connected home, specifically for the 2.4 GHz communication band.
“For too long, integrators have been troubleshooting the most crowded spectrum in the home essentially blind, relying on a phone app and a prayer,” said Ryan Gustafson, Founder and CEO of Shade Innovations.
“TriMesh™ changes that, delivering real-time spectrum health, live mesh mapping, and true diagnostics, with the resiliency to prevent costly truck rolls and network rebuilds.”
What Wireless TriMesh Delivers

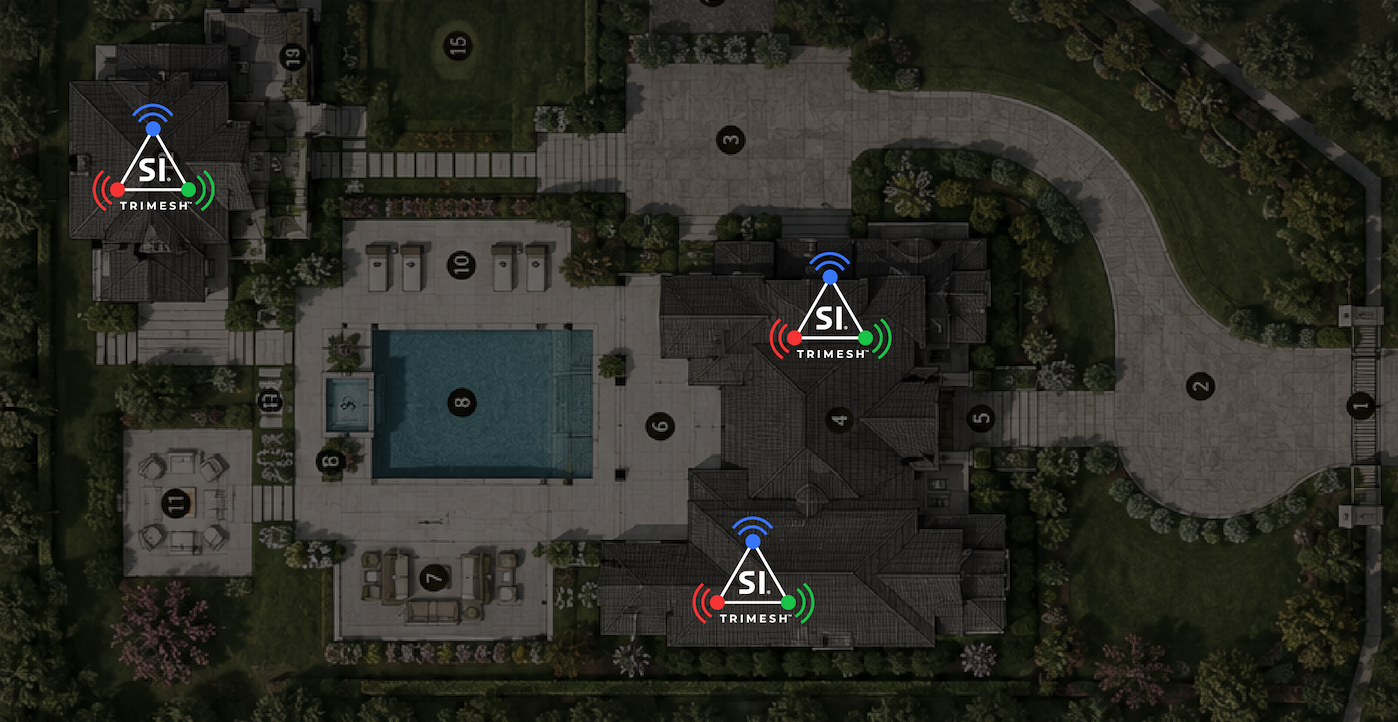

In this example, SI showcases how different TriMesh channels can be segmented across a property to facilitate larger system installations.
TriMesh operates three separate Zigbee mesh networks across three independent channels, significantly expanding system capacity while segmenting large installations. As such, an issue within one mesh remains isolated, helping protect performance across the rest of the home.
Every system configuration is then preserved in a savable site file, protecting the integrator’s commissioning work and providing a complete recovery path should hardware ever need to be replaced. If a coordinator fails or requires replacement, the system can be restored directly from that site-file backup.
An integrated spectrum analyzer also provides real-time visibility into channel health across the 2.4 GHz band, allowing integrators to identify interference and engineer around it during commissioning before it becomes a client callback. A real-time topology map provides visibility into every node, route and hop across the network, as well.
Channels can be reassigned live and independently for each mesh, allowing integrators to adapt to changing RF conditions without recommissioning the system, replacing hardware or scheduling a truck roll.
Meanwhile, purpose-built radio hardware delivers greater usable range and stronger link margins, providing extra RF performance and stability.
Because control runs on the local network rather than through the cloud, shades also keep responding even when the internet is down, commands stay fast and client data stays inside the home.
TriMesh ‘Functionally Its Own Control Platform’
According to SI, TriMesh is able to function much like a traditional control system with Native Zigbee grouping & onboard for synchronized movement across banks of shades, eliminating the staggered “popcorn” effect commonly associated with large wireless shading installations.
TriMesh also integrates directly with Home Assistant, giving integrators gain an automation engine to tie shades to time of day, sun position, temperature, occupancy, and virtually any other event in the home, working alongside the live diagnostics and mesh visibility that define TriMesh.
Through Home Assistant, TriMesh shades also become controllable across Apple HomeKit, Google Home and Amazon Alexa from a single integration.
Why Integrators Should Take Note
The 2.4 GHz band has become increasingly crowded territory in today’s connected home. Wi-Fi, Bluetooth, Zigbee, Thread, and a rapidly growing ecosystem of Matter devices all compete for the same spectrum, often simultaneously.
Motorized shades can represent one of the largest device populations on a residential mesh network, yet integrators have traditionally had limited visibility into what is happening within that environment.
Availability
Wireless TriMesh will make its debut at CEDIA Expo 2026, at the Colorado Convention Center in Denver. Attendees can experience the platform, alongside new products and features like KAOS Vinyl and Aten firsthand at Shade Innovations Booth 2818.
