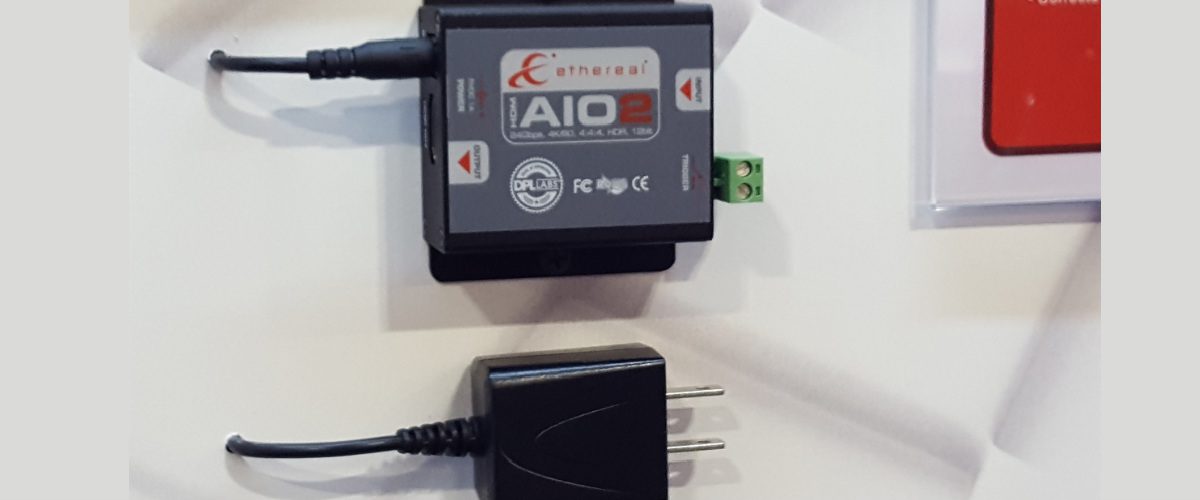

If HDMI problems put you in a tizzy, Metra Home Theater Group had you and every other installer in mind with its tiny problem solver, the HDMI All-in-One Correction Tool (AIO2).
The company highlighted the versatile applications for the product, which won a CE Pro BEST Award, at its CEDIA Expo 2019 booth in Denver.
“It fixes a vast majority of problems that an HDMI integrator/installer has out in the field,” says Brent McCall, technical support and product development, Metra Home Theater Group. “It allows you to force a hot plug reset, which allows you to restart the entire HDMI system. It fixes resolution issues, HDR issues, and audio [dropouts].”
Taking on TMDS, Voltage & Supply
The device also has a capacitive stripper built into it to make sure the rise time is correct on all the DDC EDID bus information. Additionally, it provides supplemental voltage to 5-volt, hot plug and the TMDS (transition minimized differential signaling) issues.
“For those of you with satellite receivers and cable boxes, you’ll know that TMDS problem because jobs that worked perfectly for years are suddenly showing HDCP failures – and it’s not; it’s a voltage and current supply issue,” McCall explains. “So this will take care of that problem.”
